Synology Releases SSD Line

Synology recently announced their own line of SSDs in SATA and NVMe form factors. They say these drives will provide high performance and low latency which are geared toward virtualization workloads, high IO database, and AI/HPC projects.

This is exciting news for home and small business users of Synology NAS devices. SSD cache has been around in Synology DSM for a while and according to Synology its adoption has increased by 2.4 times in 2019. Also, all SSD deployments have increased by 53% at the same time.

The SAT5200 SATA series SSDs can deliver up to 98K/67K sustained 4K random read/write IOPS with minimal performance degradation across the lifespan of the drives according to Synology. These drives also have power-loss and end-to-end data path protection to enhance durability and minimize data corruption.

Their SNV3400 and SNV3500 NVMe series SSDs help with reducing latency and random write performance. Synology says the SNV series SSDs are built to be consistent, provide over 40K IOPS under sustained random write workloads.

These SSDs have integration built right into Synology DiskStation Manager (DSM) which enables lifespan prediction based on actual workloads that provide accurate estimations.

Synology says these SSDs and add-in cards will be available soon through their solution partners and channel networks.

SAT5200 Series Specifications

 SAT5200-480GSAT5200-960GSAT5200-1920G
Capacity480 GB960 GB1.92 TB
Form Factor2.5" 7mm2.5" 7mm2.5" 7mm
InterfaceSATA 6Gb/sSATA 6Gb/sSATA 6Gb/s
Sequential Read
(128KB, QD32)
530 MB/s530 MB/s530 MB/s
Sequential Write
(128KB, QD32)
500 MB/s500 MB/s500 MB/s
Random Read
(4KB, QD32)
95,000 IOPS98,000 IOPS98,000 IOPS
Random Write
(4KB, QD32)
55,000 IOPS67,000 IOPS60,000 IOPS
Terabytes Written
(TBW)
1145 TB2290 TB4581 TB
Drive Writes Per Day
(DWPD)
1.31.31.3
Mean Time Between Failures
(MTBF)
1.5 million hours1.5 million hours1.5 million hours
Uncorrectable Bit Error Rate
(UBER)
< 1 sector per 10 bits read< 1 sector per 10 bits read< 1 sector per 10 bits read
Power Loss ProtectionYesYesYes
Warranty5 Years5 Years5 Years
Supply Voltage5V (±10%)5V (±10%)5V (±10%)
Active Read (Typ.)2.6 W2.9 W3.1 W
Active Write (Typ.)4.2 W4.6 W5.1 W
Idle1.4 W1.5 W1.6 W
Operating Temp.0°C to 70°C
(32°F to 158°F)
0°C to 70°C
(32°F to 158°F)
0°C to 70°C
(32°F to 158°F)
Storage Temp.-40°C to 85°C
(-40°F to 185°F)
-40°C to 85°C
(-40°F to 185°F)
-40°C to 85°C
(-40°F to 185°F)
Size
(H x W x D)
7 mm x 69.85 mm x 100 mm7 mm x 69.85 mm x 100 mm7 mm x 69.85 mm x 100 mm
CertificationFCC, CE, BSMI, VCCI, RCM, KC, RoHS

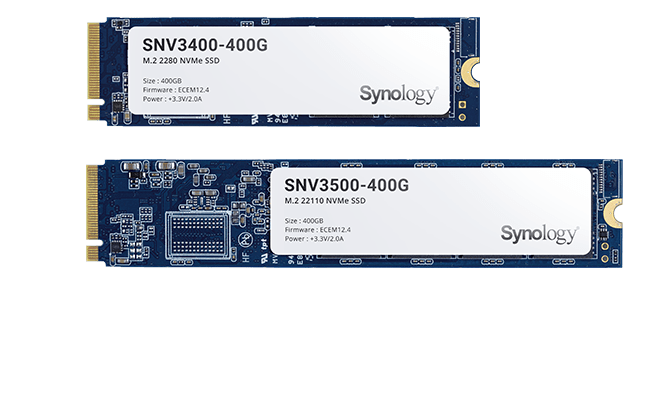

SNV Series Specifications

 SNV3400-400GSNV3500-400G
Capacity400 GB400 GB
Form FactorM.2 2280M.2 22110
InterfaceNVMe PCIe 3.0 x4NVMe PCIe 3.0 x4
Sequential Read
(128KB, QD32)
3,100 MB/s3,100 MB/s
Sequential Write
(128KB, QD32)
550 MB/s550 MB/s
Random Read
(4KB, QD32)
205,000 IOPS205,000 IOPS
Random Write
(4KB, QD32)
40,000 IOPS40,000 IOPS
Terabytes Written
(TBW)
500 TB500 TB
Drive Writes Per Day
(DWPD)
0.680.68
Mean Time Between Failures
(MTBF)
1.8 million hours1.8 million hours
Uncorrectable Bit Error Rate
(UBER)
< 1 sector per 10 bits read< 1 sector per 10 bits read
Power Loss ProtectionNoYes
Warranty5 Years5 Years
Supply Voltage3.3V (±10%)3.3V (±10%)
Active Read (Typ.)3.2 W3.7 W
Active Write (Typ.)3.2 W3.4 W
Idle2.0 W2.0 W
Operating Temp.0°C to 70°C
(32°F to 158°F)
0°C to 70°C
(32°F to 158°F)
Storage Temp.-40°C to 85°C
(-40°F to 185°F)
-40°C to 85°C
(-40°F to 185°F)
Size
(H x W x D)
3.5 mm x 22 mm x 80 mm4.5 mm x 22 mm x 110 mm
CertificationFCC, CE, BSMI, VCCI, RCM, KC, RoHS
